Waveshare Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af-Compliant with OLED for real-time Monitoring Temperature, IP, and Fan Status

Beschreibung

Power Over Ethernet HAT (Type B) For Raspberry Pi 3B+/4B, 802.3af Power-Sourcing Equipment Required

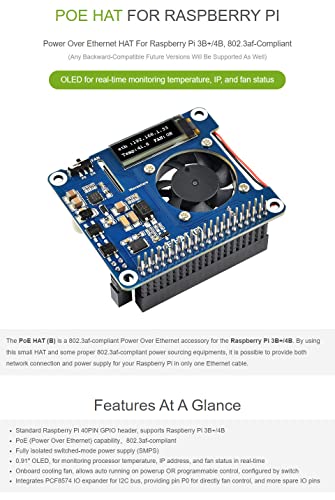

• The PoE HAT (B) is a 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
• PoE (Power Over Ethernet) capability，802.3af-compliant
• Fully isolated switched-mode power supply (SMPS)
• 0.91″ OLED, for monitoring processor temperature, IP address, and fan status in real-time
• Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
• Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

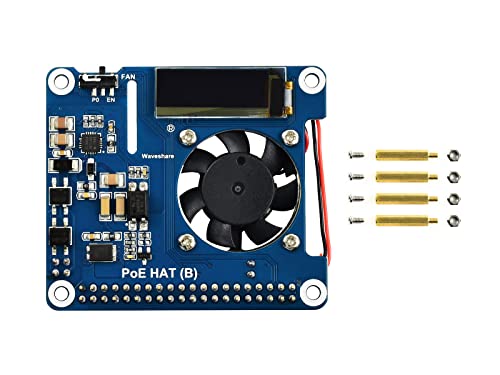

PACKAGE CONTENT

1. PoE HAT (B) x1
2. Standoffs pack x1

User Manual
WIKI: www.waveshare.com/wiki/PoE_HAT_(B)?amazon

POE HAT FOR RASPBERRY PI: Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant;OLED for real-time monitoring temperature, IP, and fan status

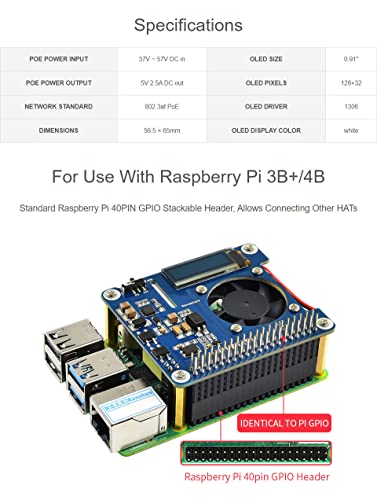

For Use With Raspberry Pi 3B+/4B: Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

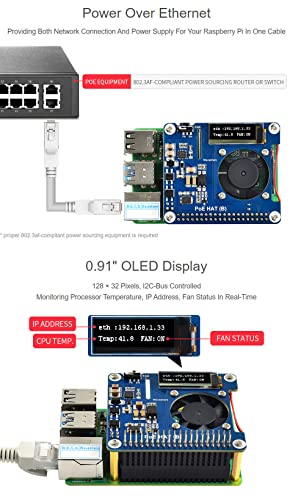

Power Over Ethernet:Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
0.91″ OLED Display: 128 × 32 Pixels, I2C-Bus Controlled Monitoring Processor Temperature, IP Address, Fan Status In Real-Time; Onboard PCF8574 Chip:PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control And Extra Spare Pins On Solder Pads (P1-P7, INT)

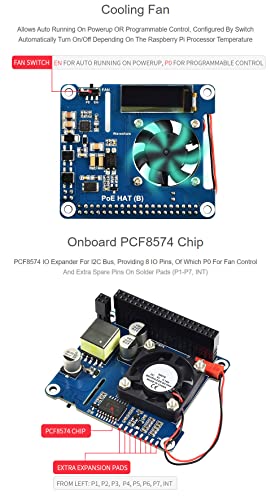

Cooling Fan: Allows Auto Running On Powerup OR Programmable Control, Configured By Switch Automatically Turn On/Off Depending On The Raspberry Pi Processor Temperature
