HUNSN 21.5 Inch TFT LED Industrial Panel PC, High Temperature 5-Wire Resistive Touch Screen, Intel J6412, PW30, HDMI, 2 x LAN, 3 x COM, Barebone, NO RAM, NO Storage, NO System

Beschreibung

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW30
Panel: 21.5″ TFT LED panel, front panel protection IP65
CPU: Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory: 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD
I/O: 12V DC, 3 x COM, HDMI, 4 x USB3.0, 2 x LAN, AUDIO, POWER_SW
Expansion: M.2 slot for WiFi, sim slot is a customized option
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 527.8 x 321 x 54.5mm
Weight: 5.7kgs
Opening Hole: 522 x 315mm
Resolution: 1920 x 1080
Perspective: 80(L), 80(R), 80(T), 80(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: High temperature five-wire resistive touch screen
Transmittance: 80±5% at 550 nm wavelength
Durability (Touch Count): ≧35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW30 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc

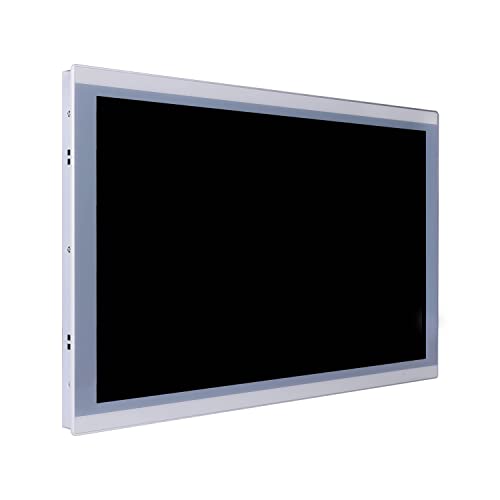

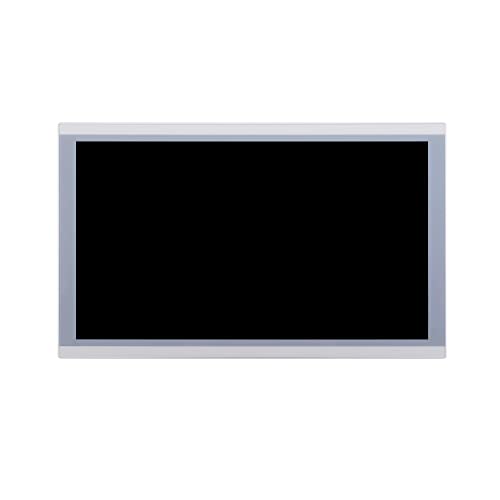

21.5 inch tft led industrial grade touch panel pc, front panel protection IP65, high temperature 5-wire resistive touch screen, typical 1920 x 1080 resolution, powered by intel celeron quad core j6412 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient

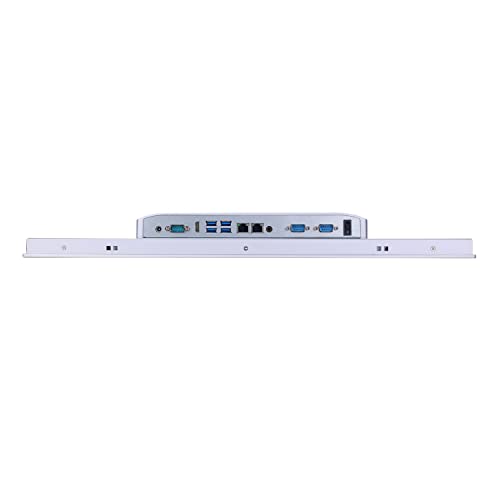

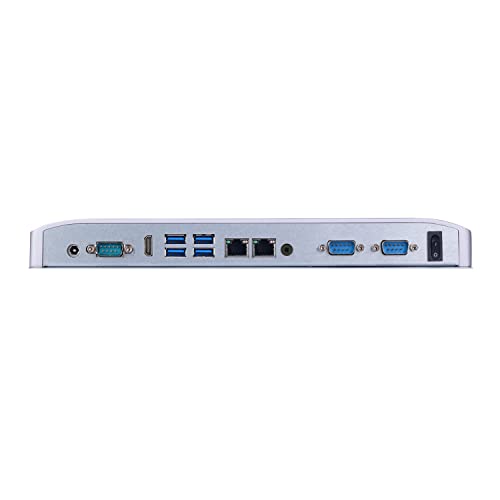

HUNSN PW30 designed with 12v dc, 3 x com, hdmi, 4 x usb3.0, 2 x lan, audio, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
Size at 527.8 x 321 x 54.5mm, 5.7kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
