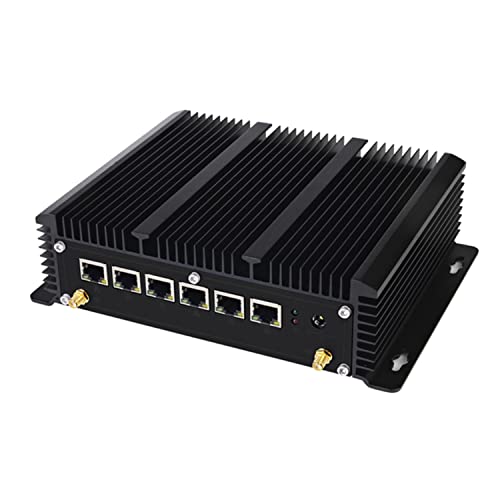

ANDAQI 6 Port, Fanless Firewall Micro Appliance/Mini PC, AES-NI, C202, Intel Quad Core I7 10510U, Barebone

Beschreibung

Specification:
Barebone System: 0 GB RAM, 0 GB SSD, 0 SYSTEM
CPU: Intel Core i7-10510U Processor (8M Cache, up to 4.90 GHz)
RAM: 1 x SO DIMM DDR4-2666, max size 32 GB
Storage: 1 x mSATA SSD
Expand Storage: 1 x 2.5-inch SATA Laptop SSD / Mechanical Hard Disk (HDD)
Intel AES New Instructions: Yes
Processor Graphic: Intel UHD Graphics
Processor Base Frequency: 1.80 GHz
Burst Frequency: 4.90 GHz

Wireless Technology:
WiFi: N/A, expandable
3G/4G: N/A, expandable, with SIM slot onboard

Mount: IPC ears

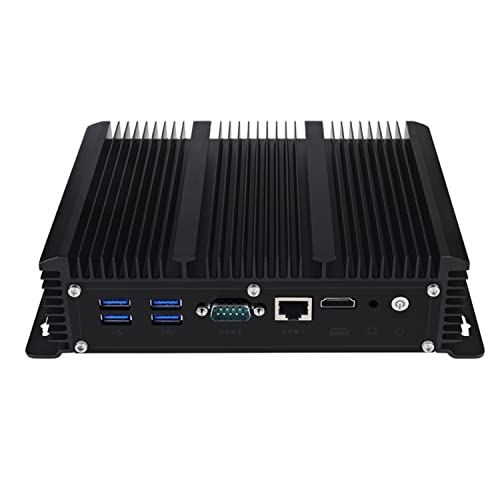

Interface:
1 x Power Button
1 x HDMI
1 x COM RJ45
1 x COM RS232
4 x USB3.0
6 x LAN
1 x RST
1 x DC_in

Packing List:
The C202 Firewall Appliance
A 19v Power Adaptor
A Power Cable
A 2.5-inch HDD SATA Cable
A 2.5-inch HDD Power Cable
A Bag of Screws
The Warranty Card

Hardware: Andaqi C202 – compact, fanless & silent in a compact structure – Intel Core i7-10510U Processor (8M Cache, up to 4.90 GHz) cpu – Intel UHD Graphics – AES-NI hardware support – barebone option – ram, ssd and a system are needed by the user’s self-assembly
Expansion: Memory up to a slot 32gb ddr4 so dimm ram, storage up to a 1tb mSATA/2.5 inch ssd/hdd – WiFi / 4G support
Type: fanless firewall micro appliance / mini pc
Port: 6 x intel gigabit ethernet nics – 1 x hdmi, 1 x com rj45, 1 x com rs232, 4 x usb3.0, 1 x rst
Compatibility: tested with pfsense, sophos, untangle, opnsense, ubuntu, clearos, freebsd, monowall, debian, endian, smothwall utm, openbsd, zeroshell, mikrotik, zentyal, openwrt, vyos and other popular open-source software solutions – perfect for edge policy stations, network servers, lan or wan router, vpn appliance, dhcp server, dns server and can be configured as a firewall either open-source or commercial
